TORCHN 12V 100Ah Gel Lead Acid Battery
Features
1. Small Internal Resistance
2. More Better Quality, More Better Consistency
3. Good Discharge, Long Life
4. Low temperature resistant
5. Stringing Walls Technology Will Transport Safer.
Application
Deep cycle maintenance free gel battery.Our products can be used in UPS,solar street light,solar power systems,wind system,alarm system and telecommunications etc.
In addition to its performance, this battery is also designed with convenience in mind. Its maintenance-free design means you can install it and forget about it, without the need for regular maintenance or monitoring. This makes it an ideal choice for applications where ease of use is a priority.
Parameters
| Cell Per Unit | 6 |
| Voltage Per Unit | 12V |
| Capacity | 100AH@10hr-rate to 1.80V per cell @25°c |
| Weight | 31KG |
| Max. Discharge Current | 1000 A (5 sec) |
| Internal Resistance | 3.5 M Omega |
| Operating Temperature Range | Discharge: -40°c~50°c |
| Charge: 0°c~50°c | |
| Storage: -40°c~60°c | |
| Normal Operating | 25°c±5°c |
| Float charging | 13.6 to 14.8 VDC/unit Average at 25°c |
| Recommended Maximum Charging Current | 10 A |
| Equalization | 14.6 to 14.8 VDC/unit Average at 25°c |
| Self Discharge | Batteries can be stored for more than 6 months at 25°c. Self-discharge ratio less than 3% per month at 25°c. Please charge batteries before using. |
| Terminal | Terminal F5/F11 |
| Container Material | A.B.S. UL94-HB, UL94-V0 Optional |

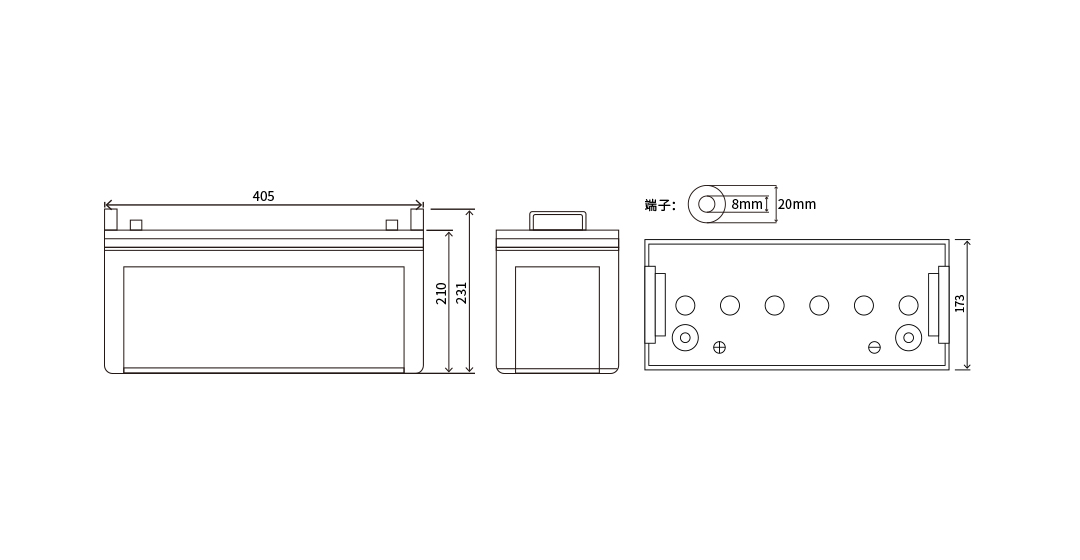

Dimensions
Structures
Installation and Use
Factory Video and Company Profile
Exhibition
FAQ
1. Do you accept customization?
Yes, customization is accepted.
(1) We can customize the color of the battery case for you. We have produced red- black,yellow-black,white-green and orange-green shells for customers, usually in 2 colors.
(2) You can also customize the logo for you.
(3) The capacity can also be customized for you, normally within 24ah-300ah.
2. Do you have a minimum order quantity?
Normally yes, if you have a freight forwarder in China to handle the transportation for you. One battery can also be sold to you, but the shipping fee will normally be more expensive.
3. How to maintain and use gel batteries?
(1) Ensure the normal charging of the gel battery.
When the gel battery is left unused for a long time, because the battery itself has self-discharge, we need to charge the battery in time.
(2) Choose a suitable charger.
If you use a charger, you need to use a charger with matching voltage and current. If it is used in an off-grid system, then a controller with voltage and current adaptation is required.
(3) Depth of discharge of gel battery.
Discharge under suitable DOD, long-term deep charge and deep discharge will affect the life of the battery. The DOD of gel batteries is generally recommended to be 70%.
4. What is your lead time?
1)Sample orders will be delivered from our factory within 3 working days.
2)General orders will be delivered from our factory within 15 working days.
3)Big orders will be delivered from our factory within 25 working days at most.
5. How about your warranty?
Normally,we provide 5 years warranty for solar inverter,5+5 years warranty for lithium battery,3 years warranty for gel/lead acid battery, and whole life technical support.
